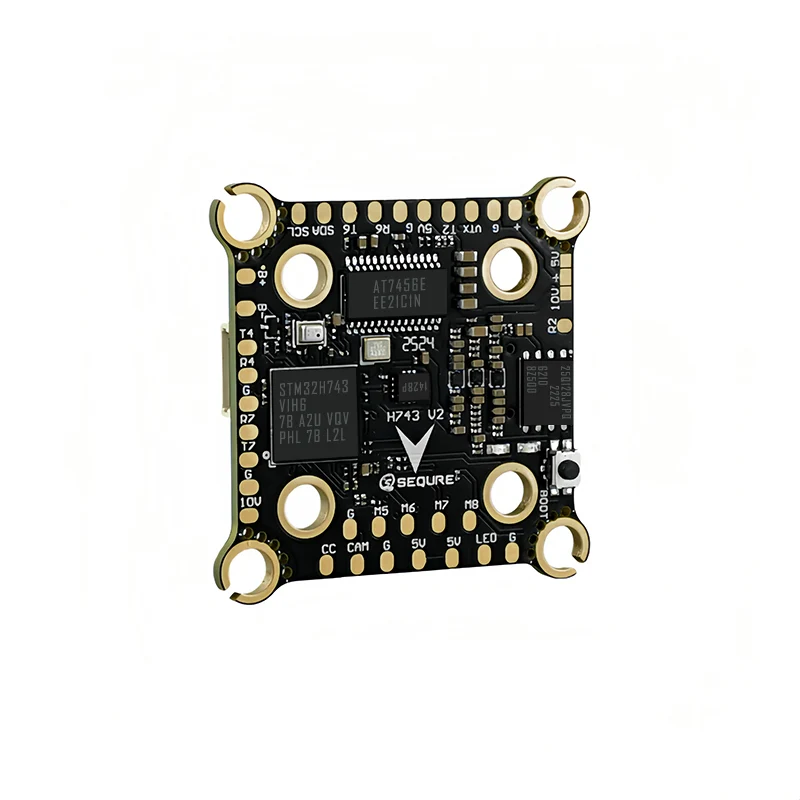

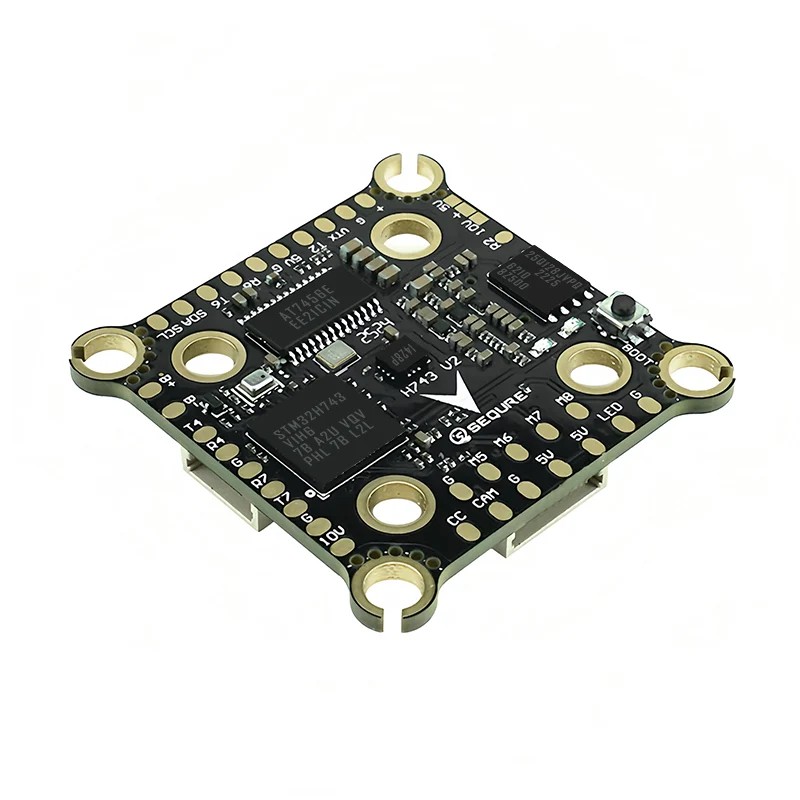

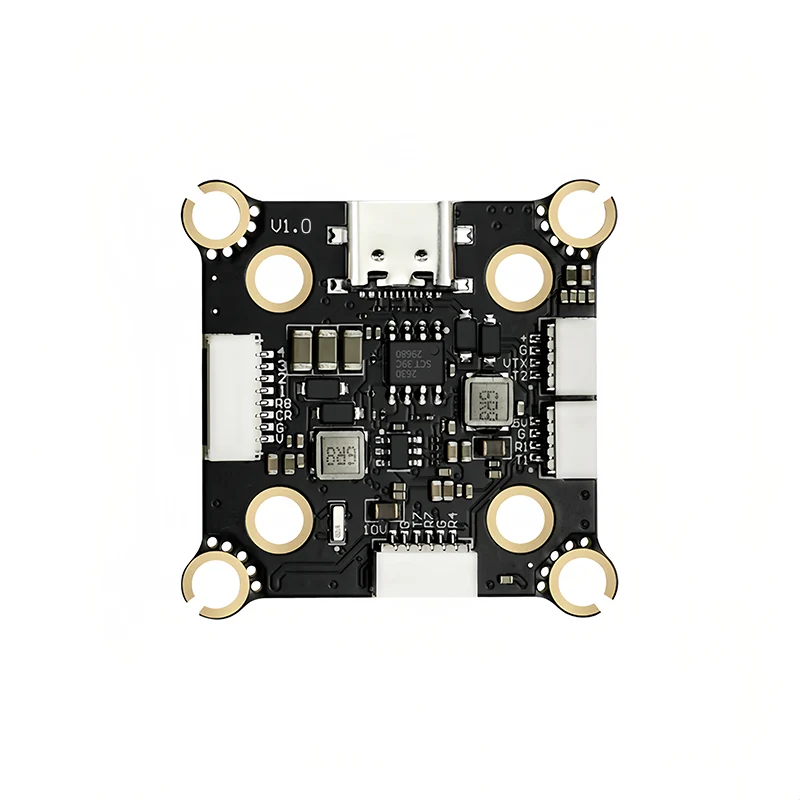

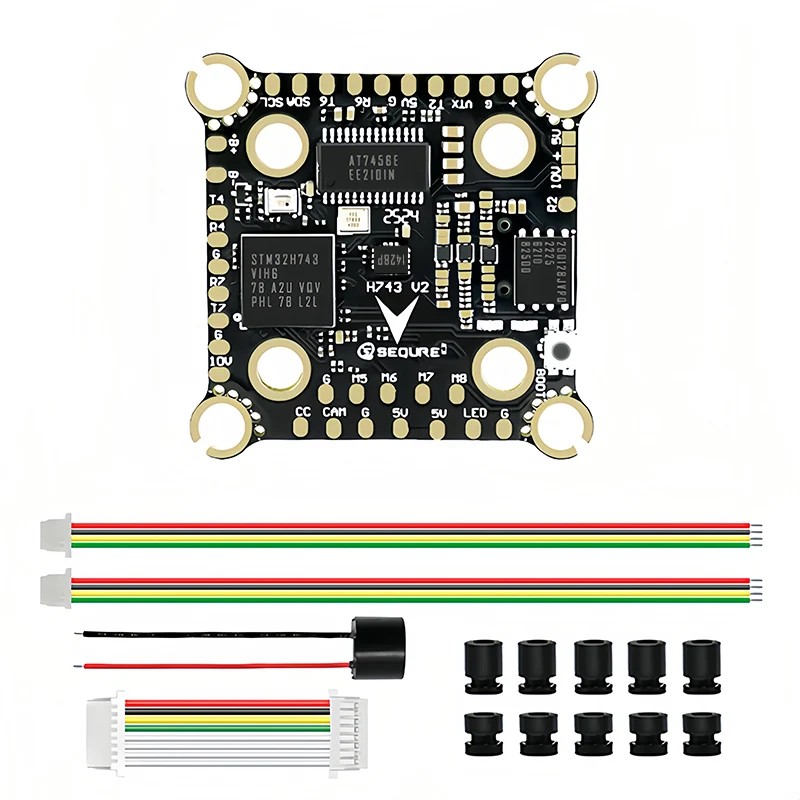

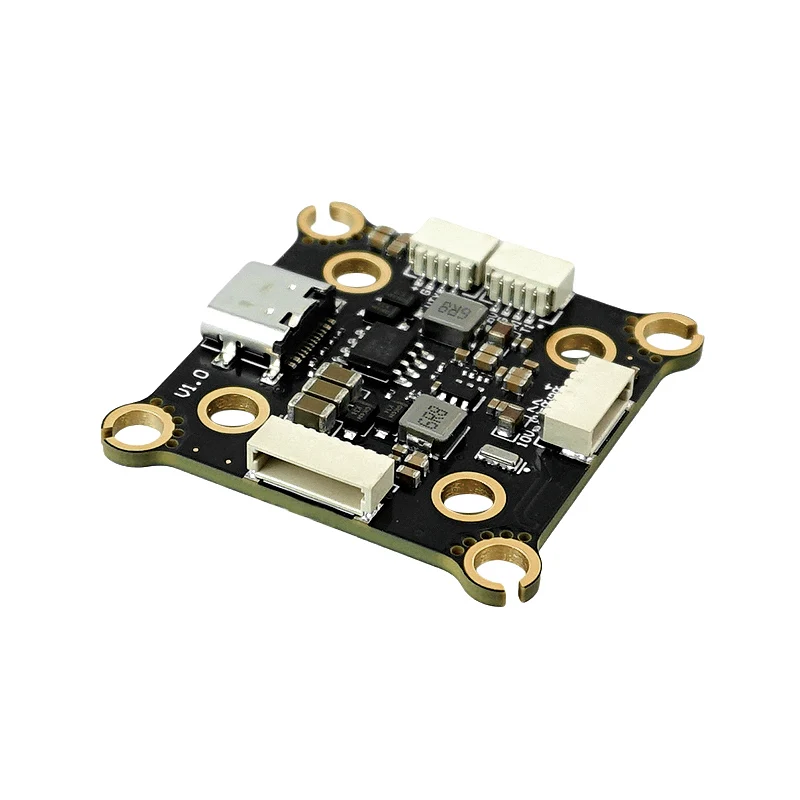

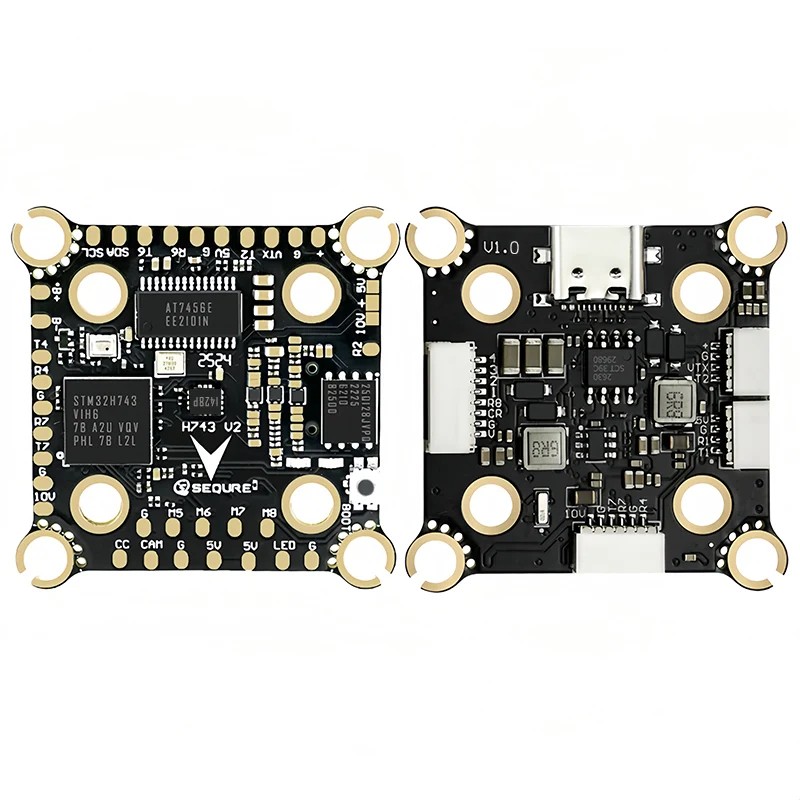

SEQURE H743 V2 ICM42688P FC 4-8S Dual BEC For X8 Racing Aerial Photography Freestyle

SEQURE H743 V2 ICM42688P FC 4-8S Dual BEC For X8 Racing Aerial Photography Freestyle

$59.99

Built-in vibration damping, adapt to various harsh operating environments.
Triple-redundant IMUs with intelligent fault switching capability.
Supports temperature compensation for enhanced IMU performance.
CAN bus-compatible current meter support.
Modular design with customizable carrier board options.

12 People watching this product now!

UPS Courier delivery

UPS courier will deliver to the specified address

2-3 Days

Free 14-Day returns

Easy returns within 14 days

Product Description

Product Description:

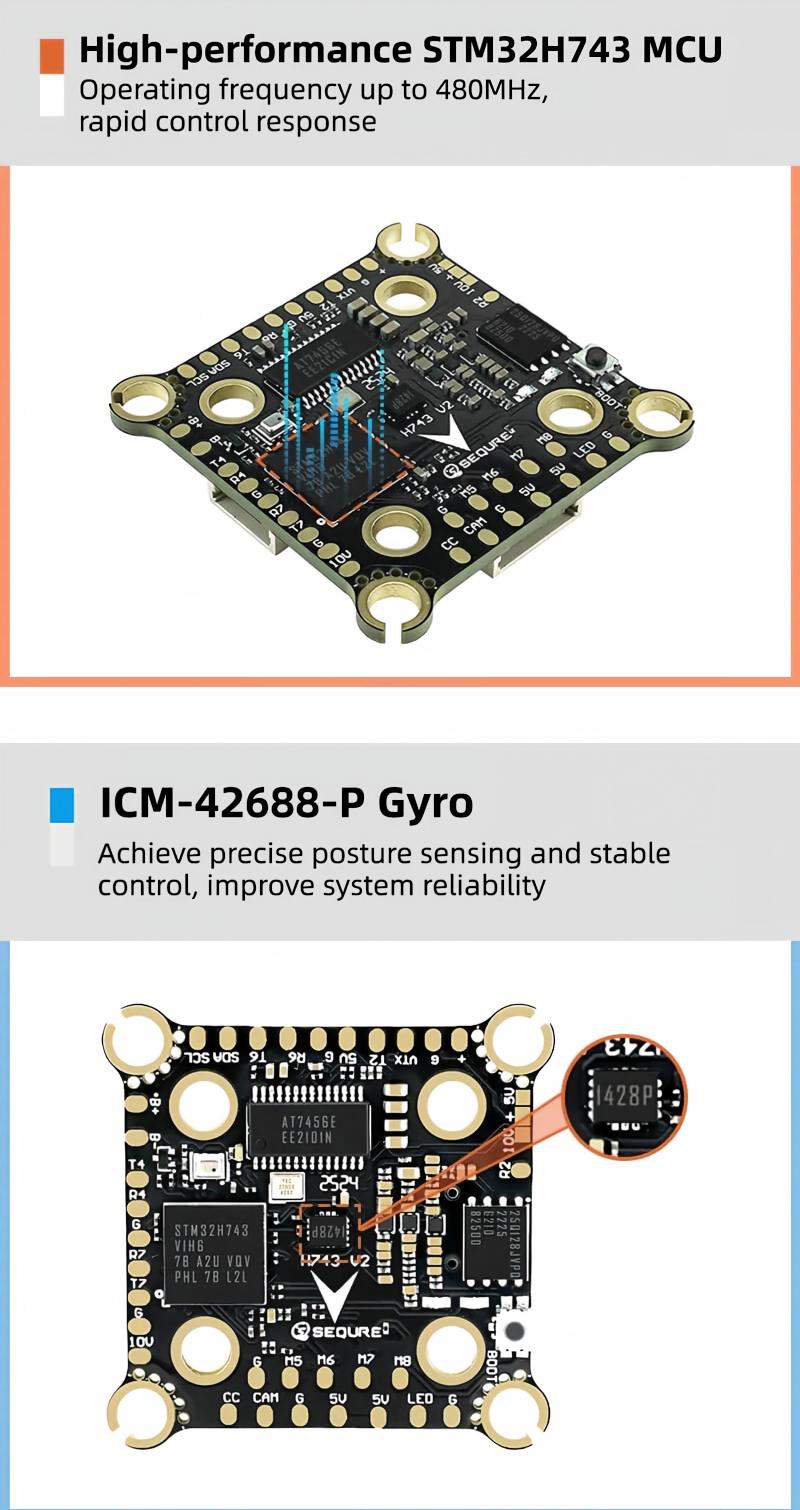

(1) Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.
(2) Adopts ICM42688P gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.

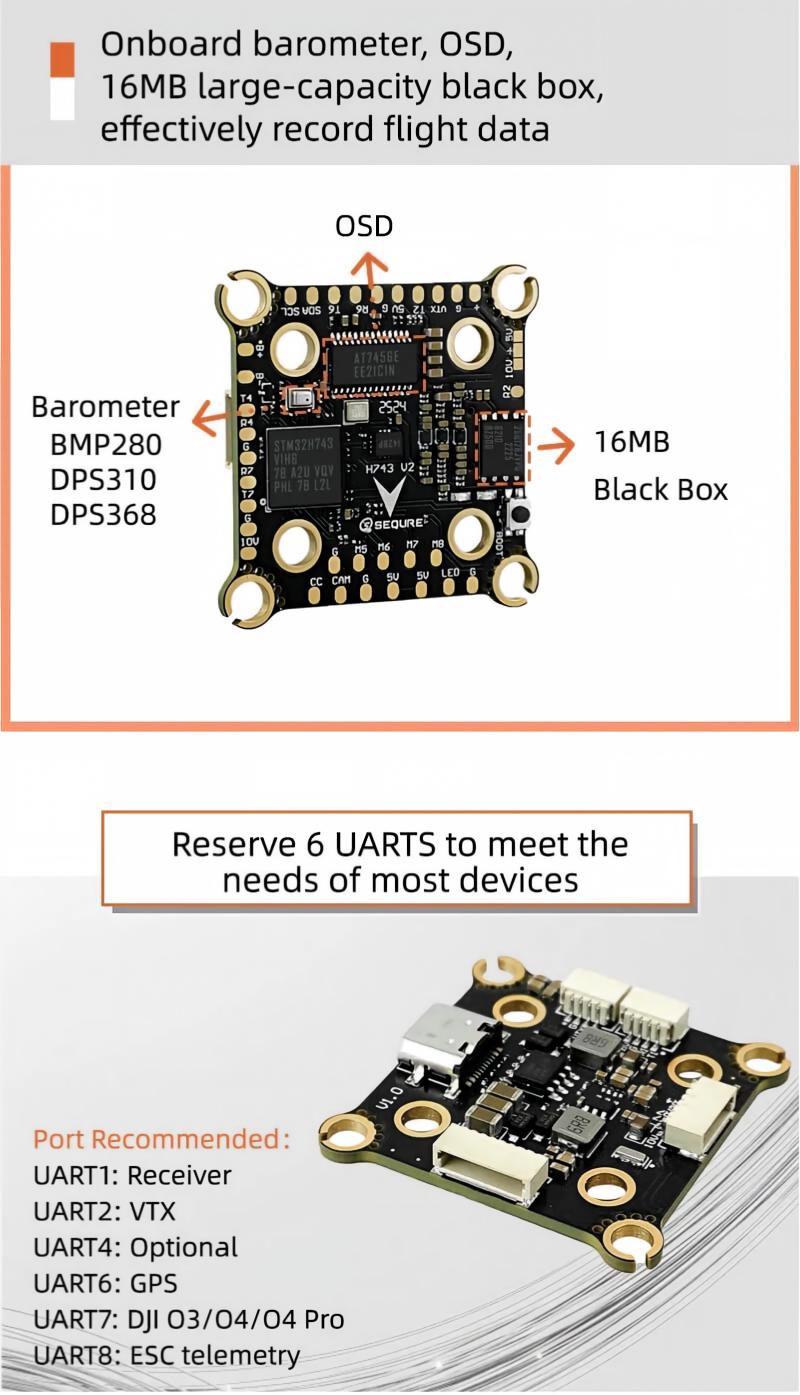

(3) SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.
(4) Reserve 6 UARTS to meet the needs of most devices.

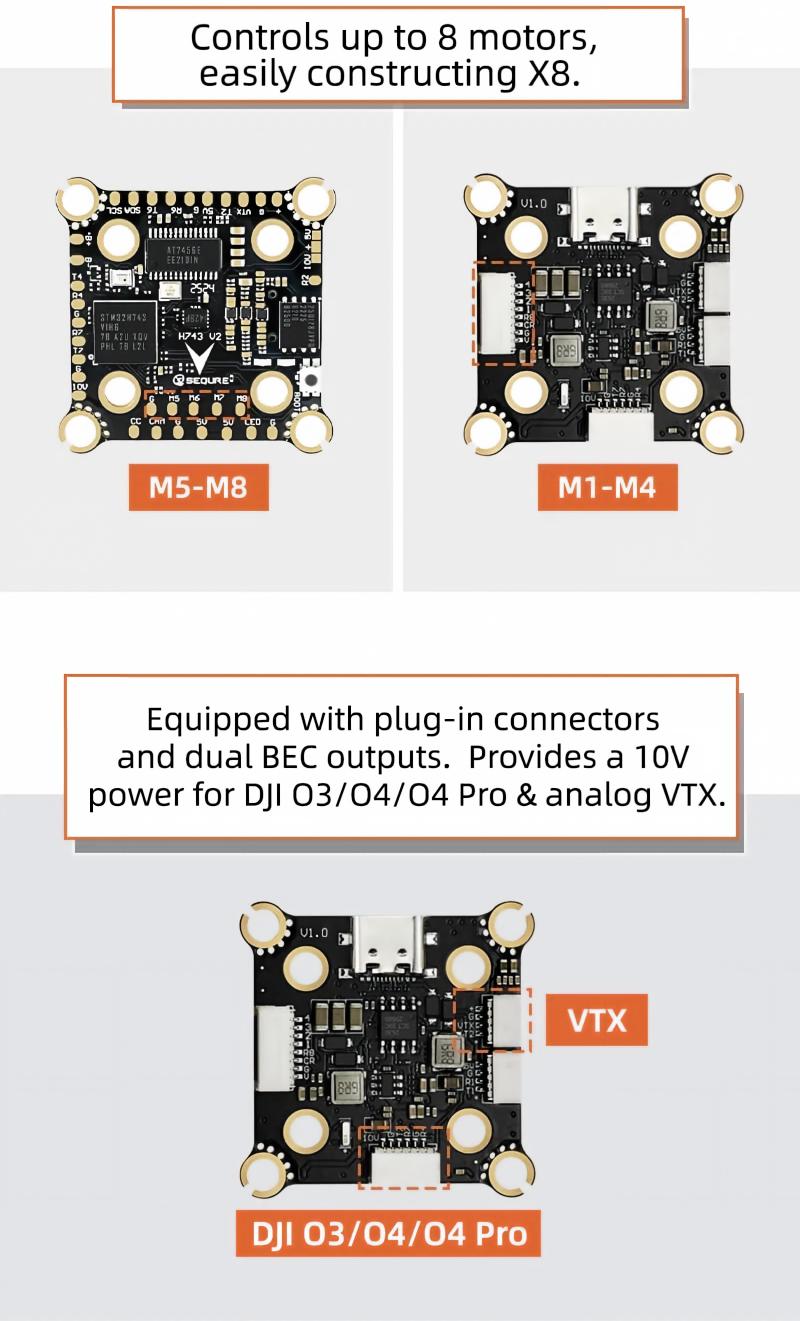

(5) It can control up to 8 motors, easily constructing X8.
(6) Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage, allowing the DJI O3/O4/O4 Pro and analog VTX to plug in for use directly.

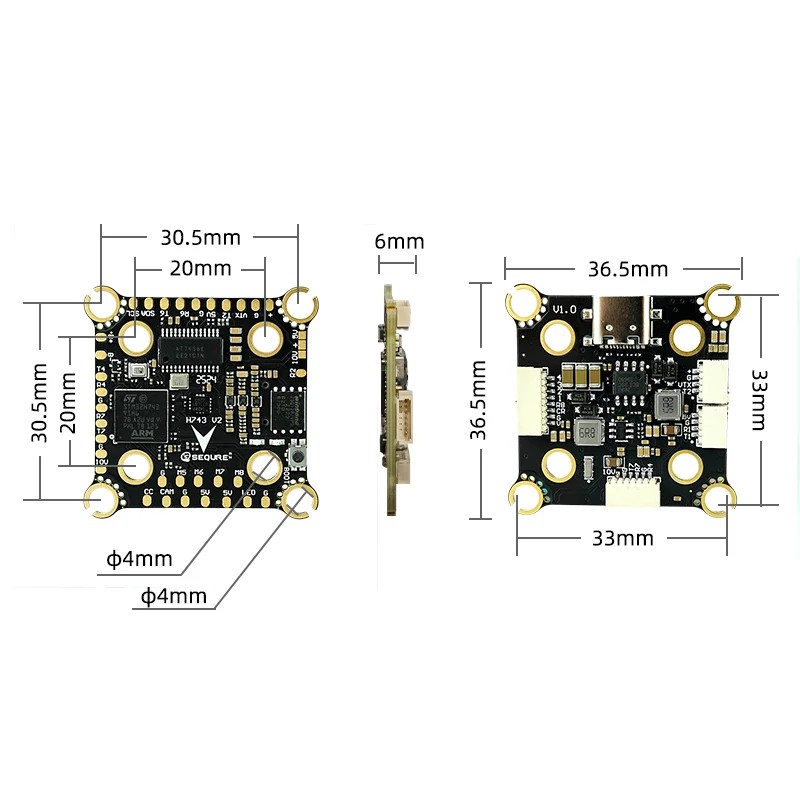

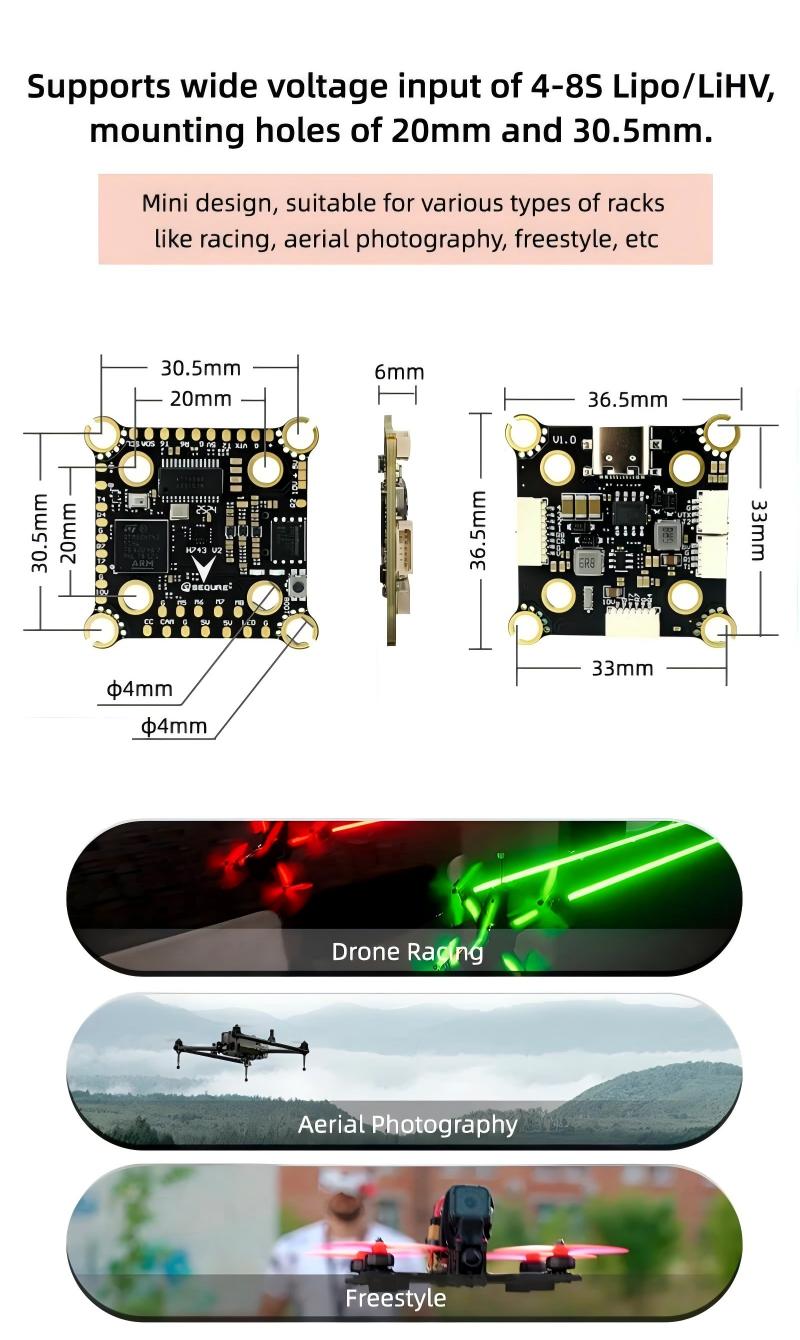

(7) Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.

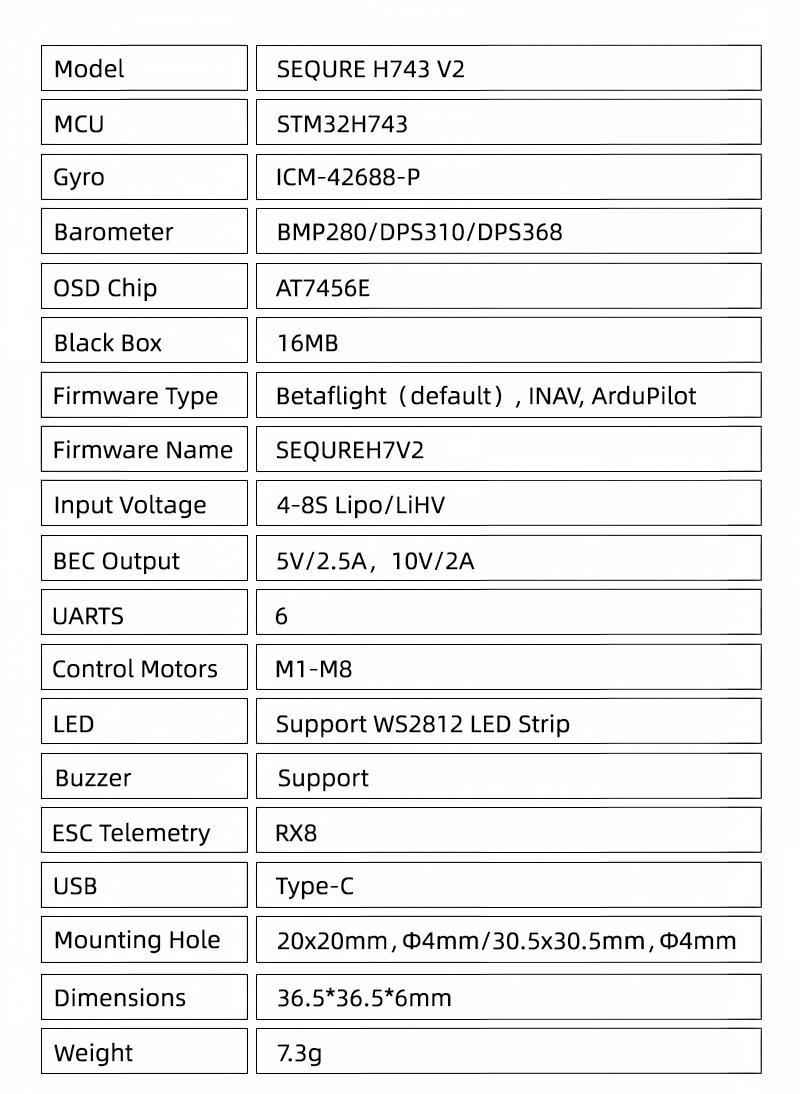

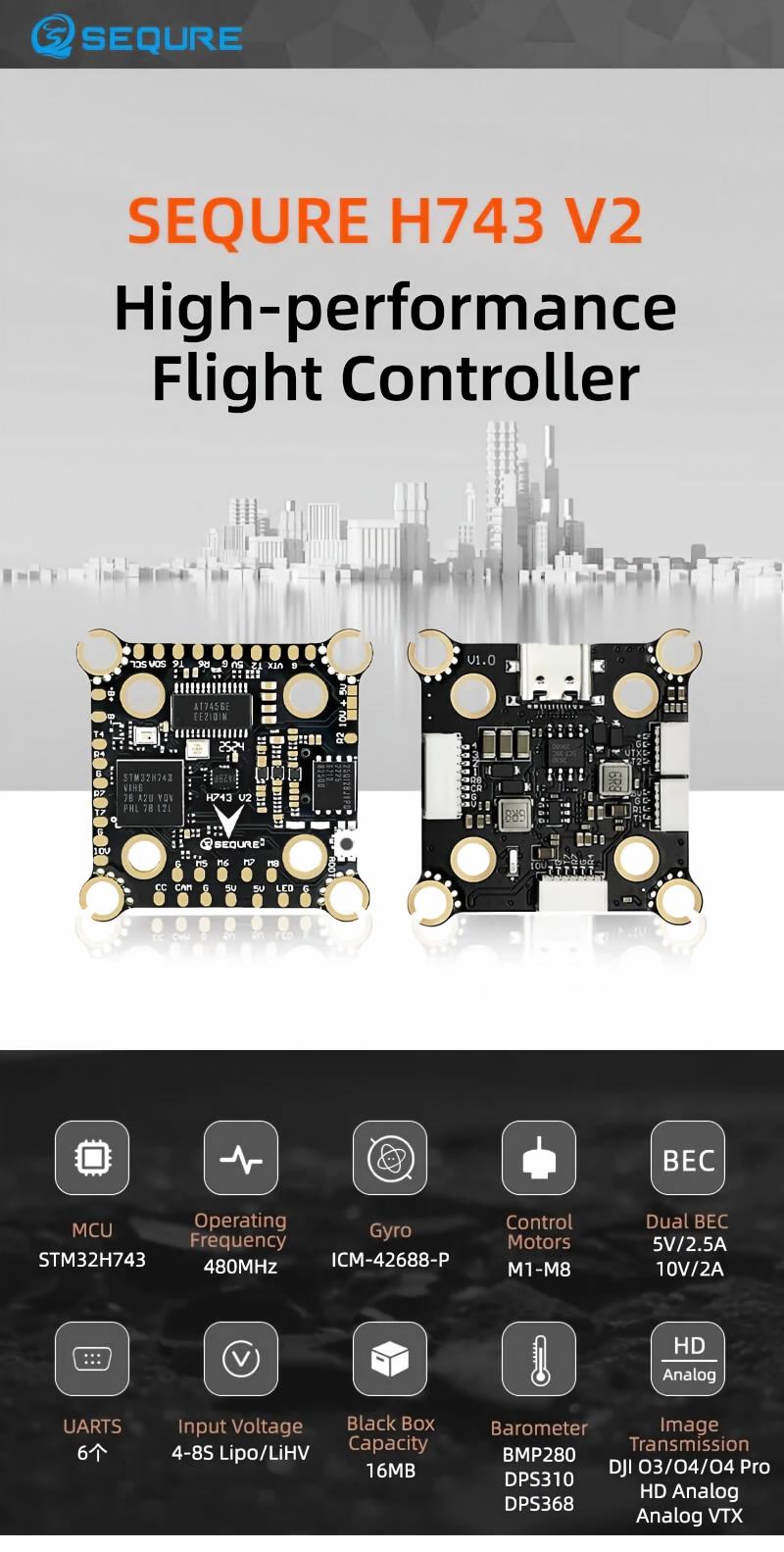

H743_V2_FC_Details (1)(1).jpg
