RUSH BLADE F405 30x30 Flight Controller For Analog Version

RUSH BLADE F405 30x30 Flight Controller For Analog Version

$33.99

Built-in vibration damping, adapt to various harsh operating environments.
Triple-redundant IMUs with intelligent fault switching capability.
Supports temperature compensation for enhanced IMU performance.
CAN bus-compatible current meter support.
Modular design with customizable carrier board options.

48 People watching this product now!

UPS Courier delivery

UPS courier will deliver to the specified address

2-3 Days

Free 14-Day returns

Easy returns within 14 days

Product Description

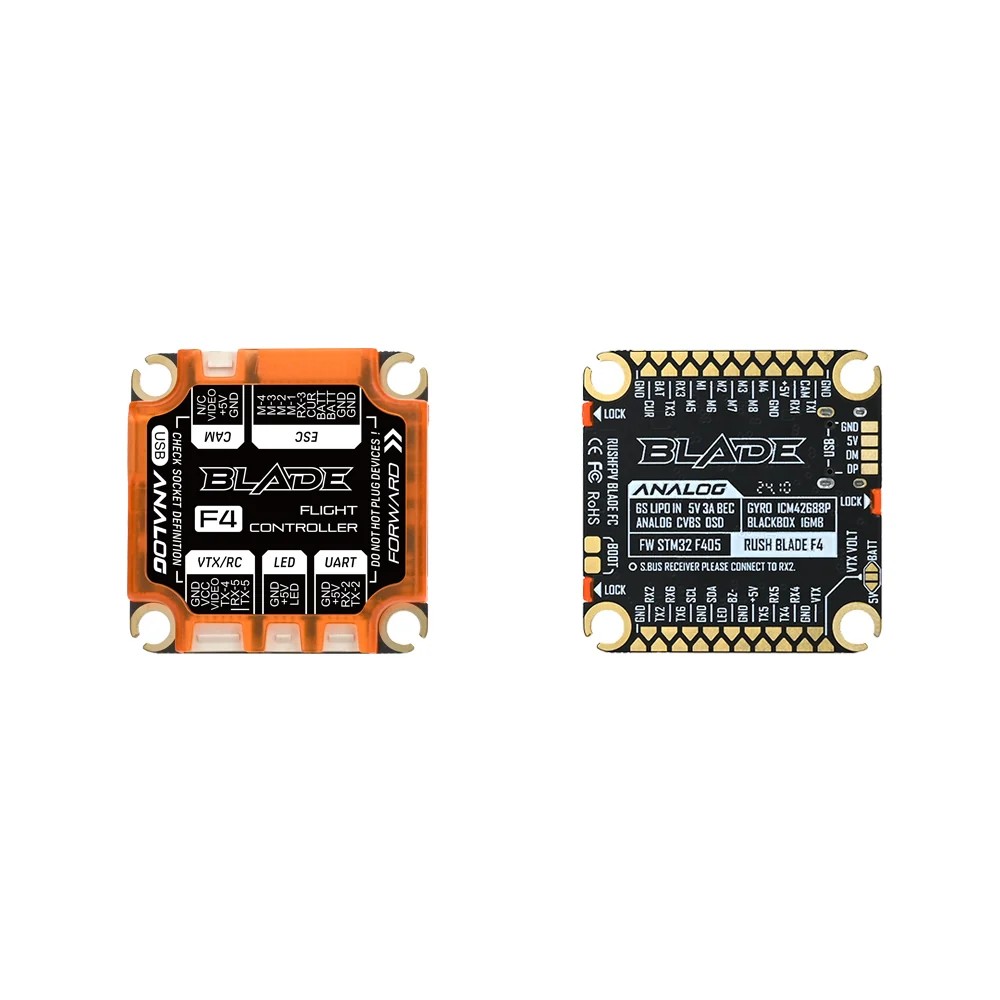

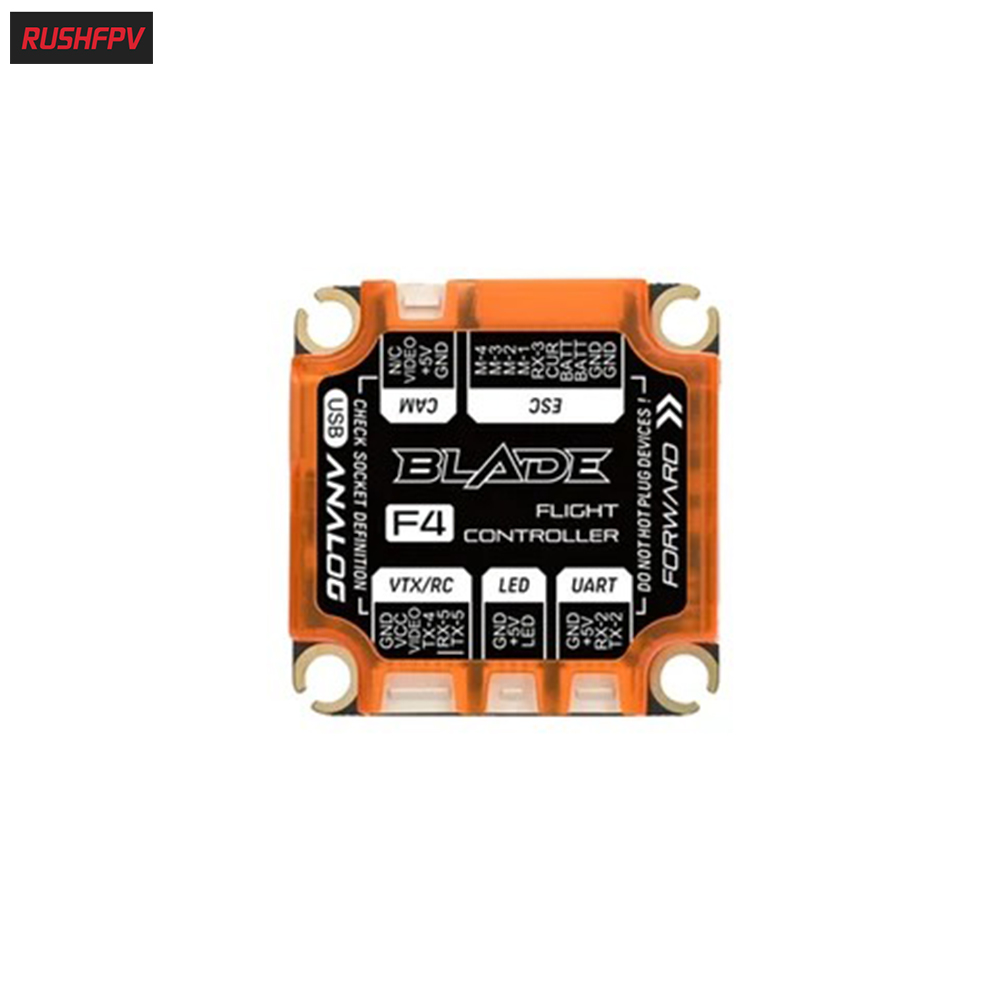

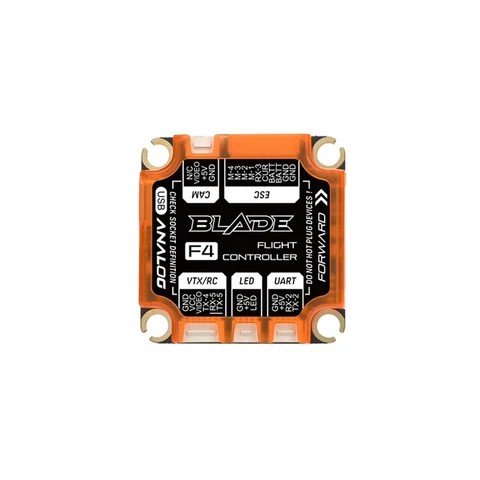

RUSH BLADE F405 Analog‑version Flight Controller, 30.5×30.5mm‑M3 mounting spacing. Powered by STM32F405 main MCU and ICM42688‑P high‑precision gyroscope, specially optimized for analog VTX system. Built‑in AT7456E OSD chip, 5V‑3A & 10V‑2A dual‑channel BEC output, multiple UART ports, full‑modular solder‑free connectors. Supports Betaflight, INAV and ArduPilot firmware. Compact, stable stack‑style flight board, excellent upgrade component for analog FPV freestyle and racing quadcopters.
