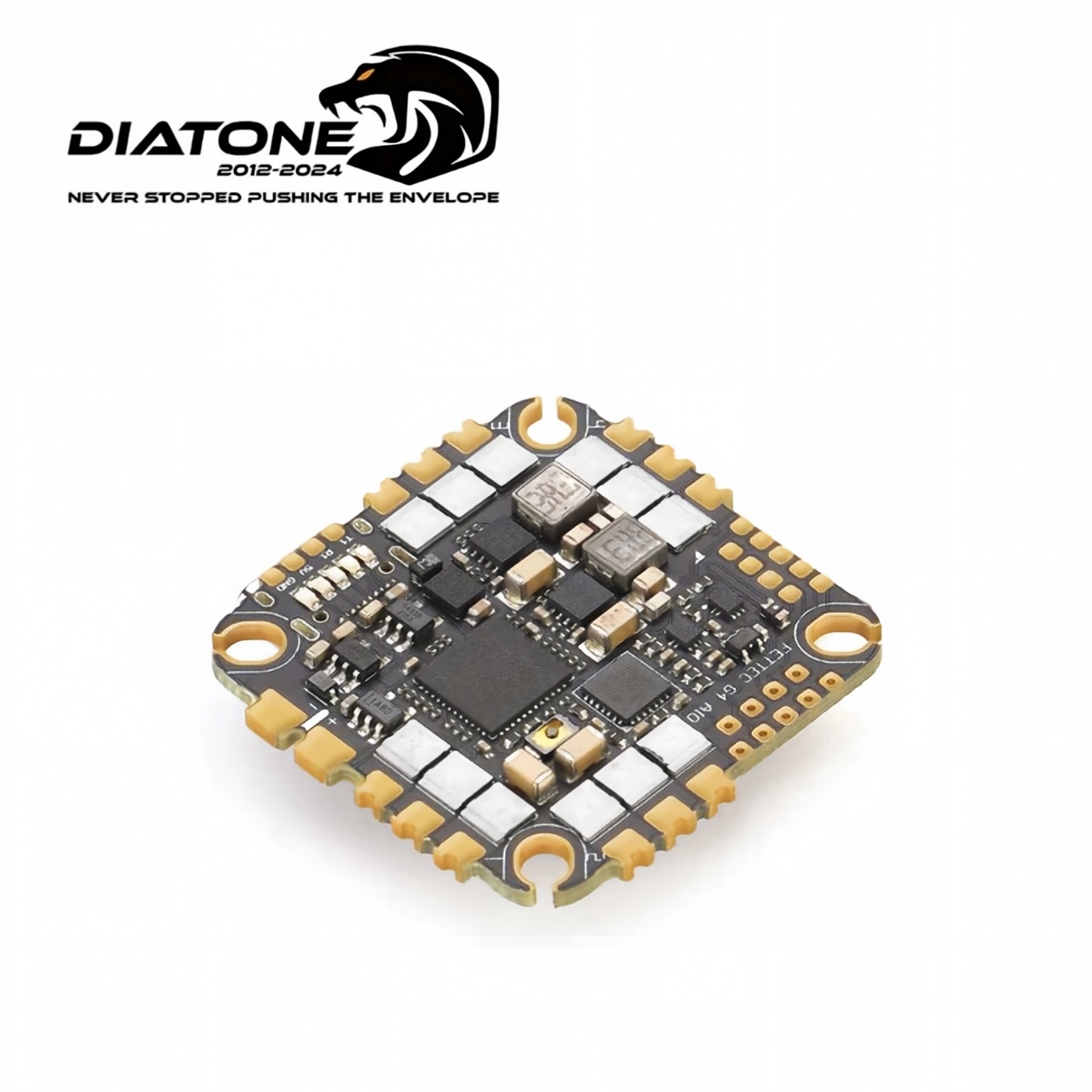

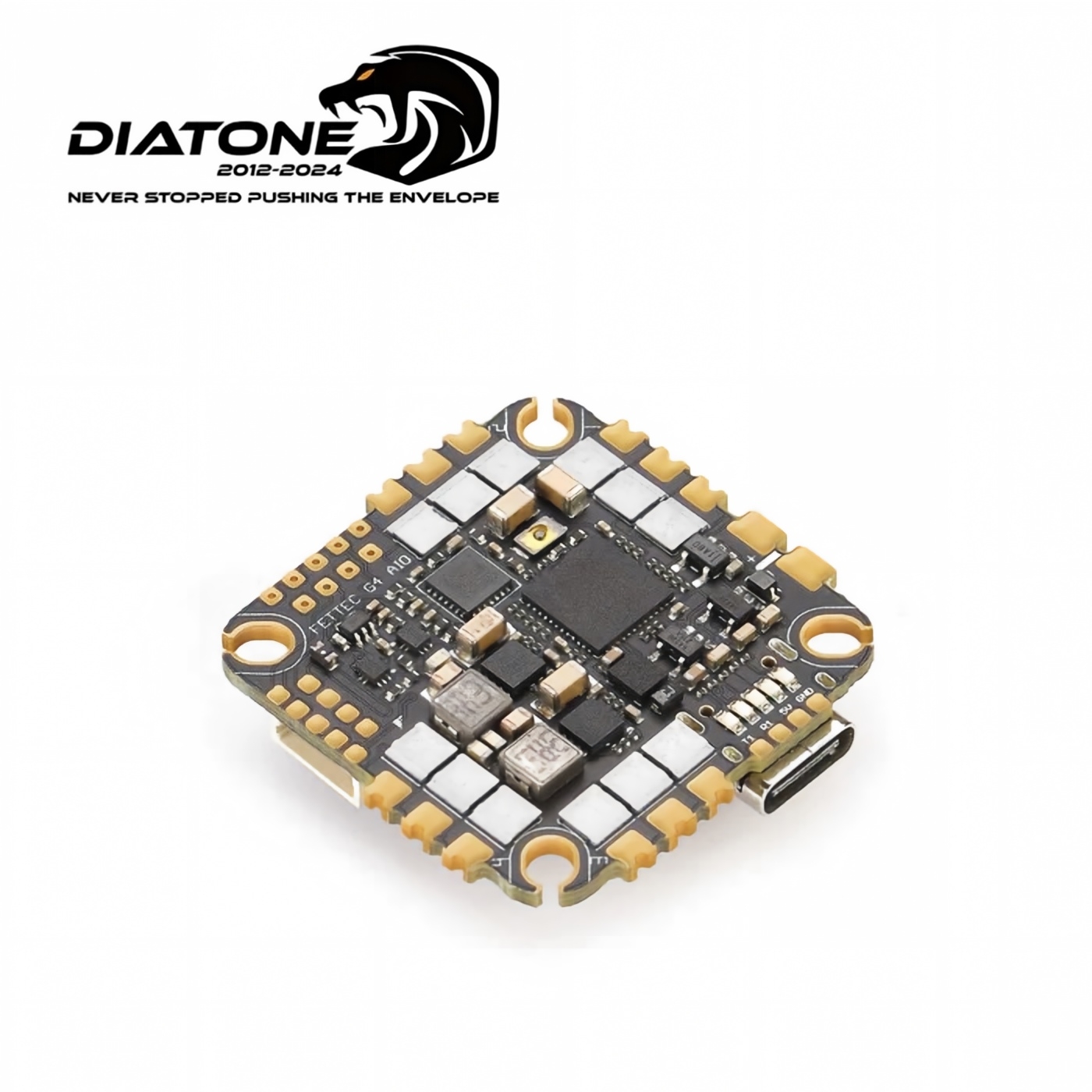

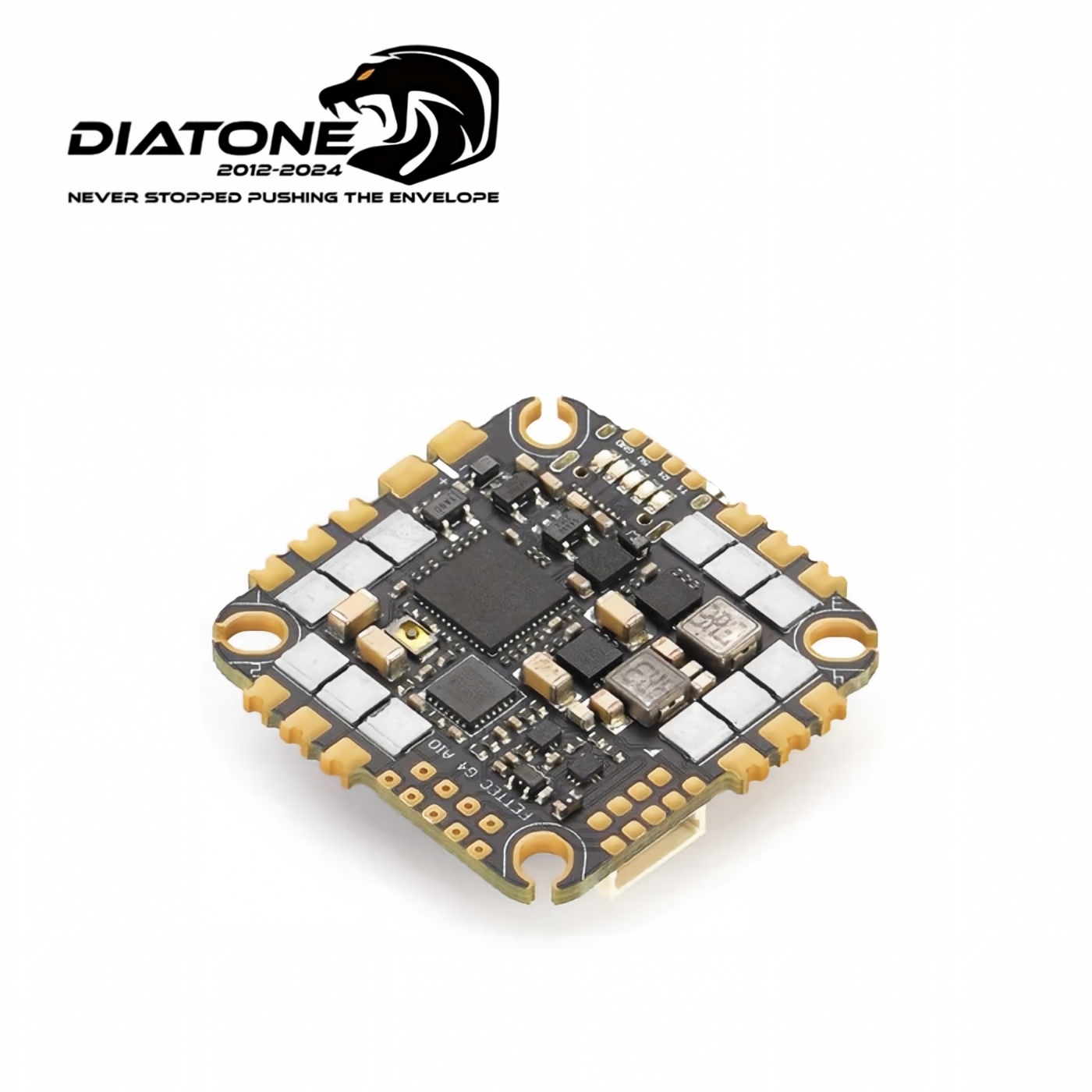

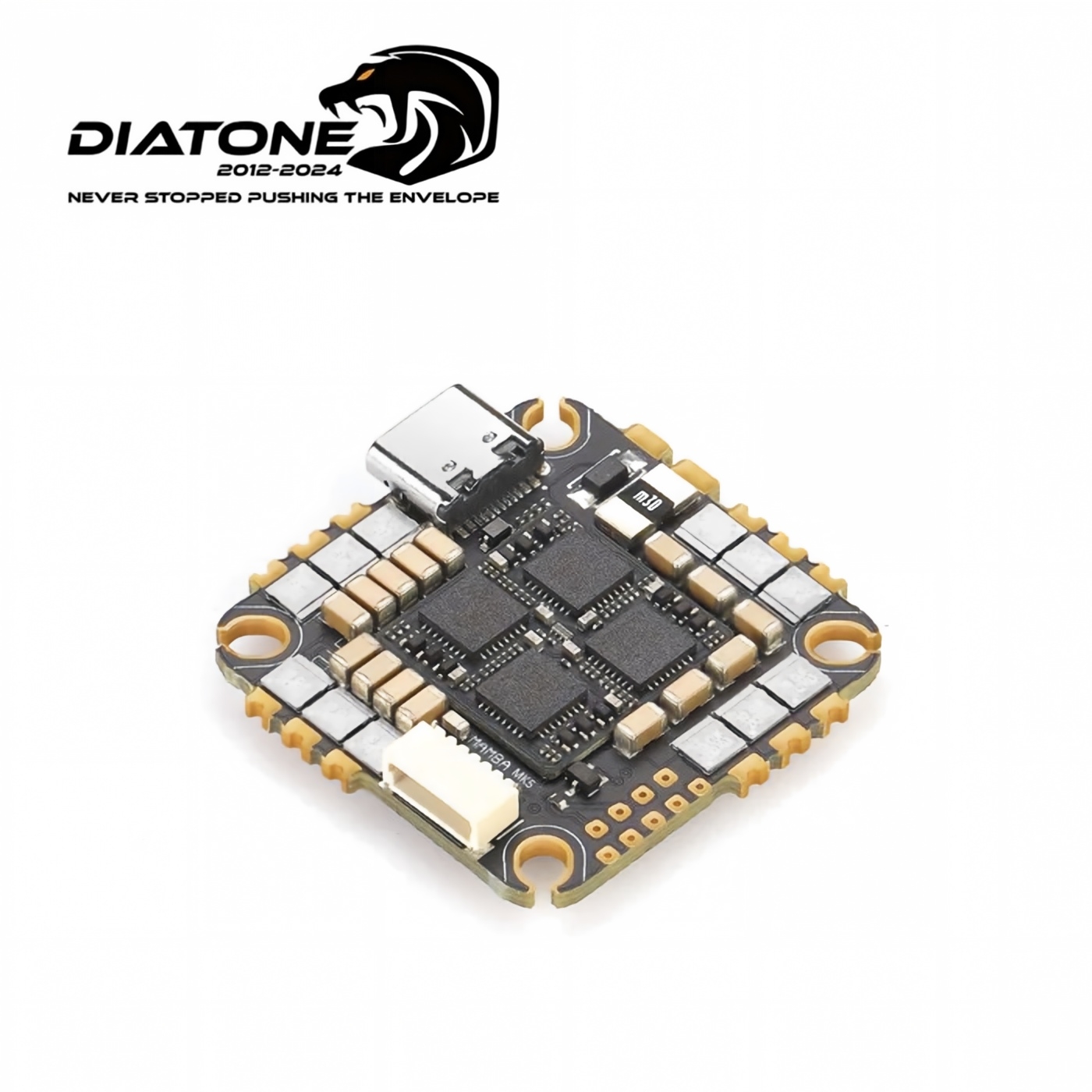

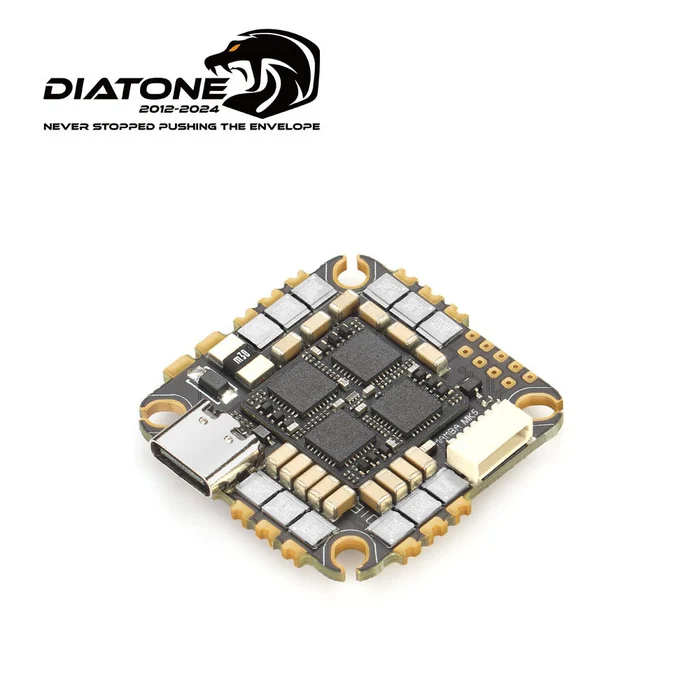

MAMBA MK5 G4 AIO Alpha 40A 6S Dshot2400 Flight Controller

MAMBA MK5 G4 AIO Alpha 40A 6S Dshot2400 Flight Controller

$79.99

Built-in vibration damping, adapt to various harsh operating environments.
Triple-redundant IMUs with intelligent fault switching capability.
Supports temperature compensation for enhanced IMU performance.
CAN bus-compatible current meter support.
Modular design with customizable carrier board options.

39 People watching this product now!

UPS Courier delivery

UPS courier will deliver to the specified address

2-3 Days

Free 14-Day returns

Easy returns within 14 days

Product Description

FC Specifications
Target： Alpha
MCU: 170MHz STM32G473
GYRO: IIM-42652
OSD: Yes
Uarts: 4 Set
Motor Signal:4 Set
ESC Soft: Dshot300/600/1200/2400
Power Led: Yes
LED Controller: Yes
AIR UNIT Port: Yes
Buzz: Yes
Input: 4~6S Lipo (14.8~25.2V)
BEC Protection: Yes
Receiver Protection: Yes
TVS Protection: Yes
BEC: 10V 2A& 5V 2A
Mounting size: 25.5×25.5mm/M2
Overall dimensions: 35×34.5×6.5mm
