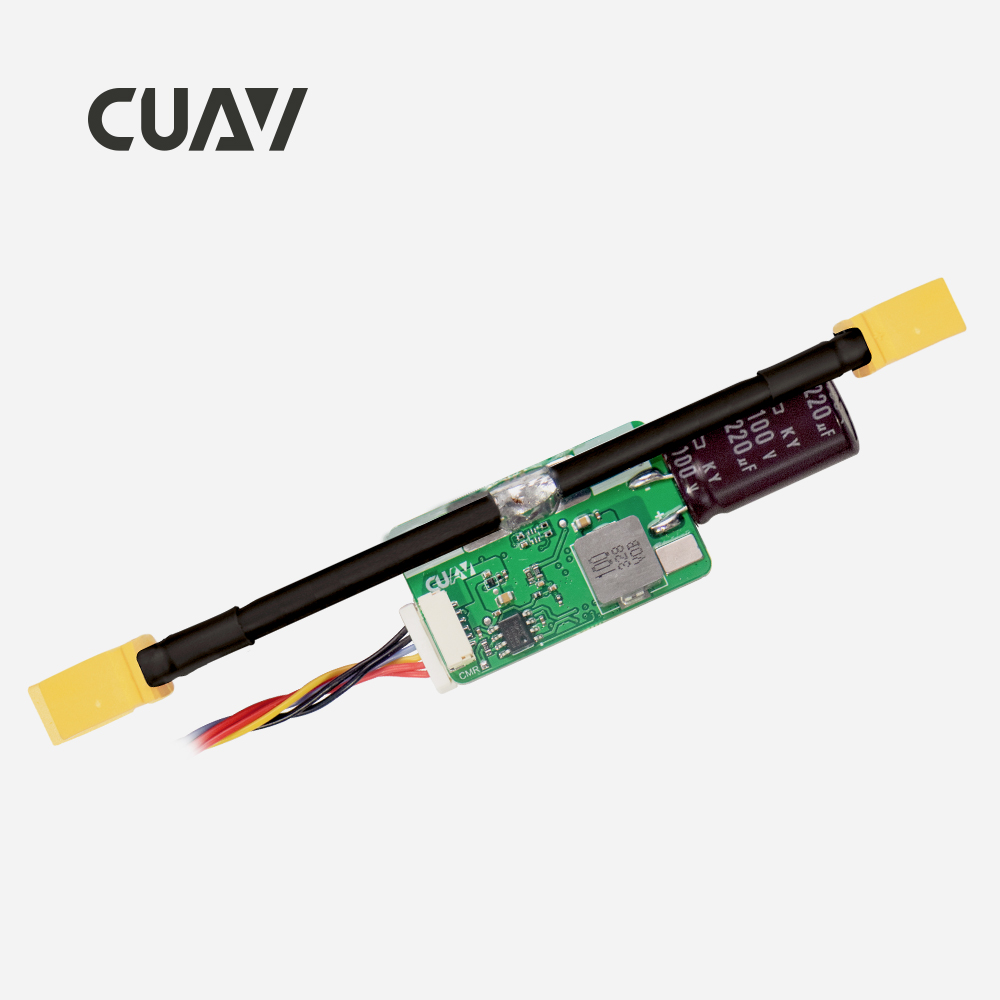

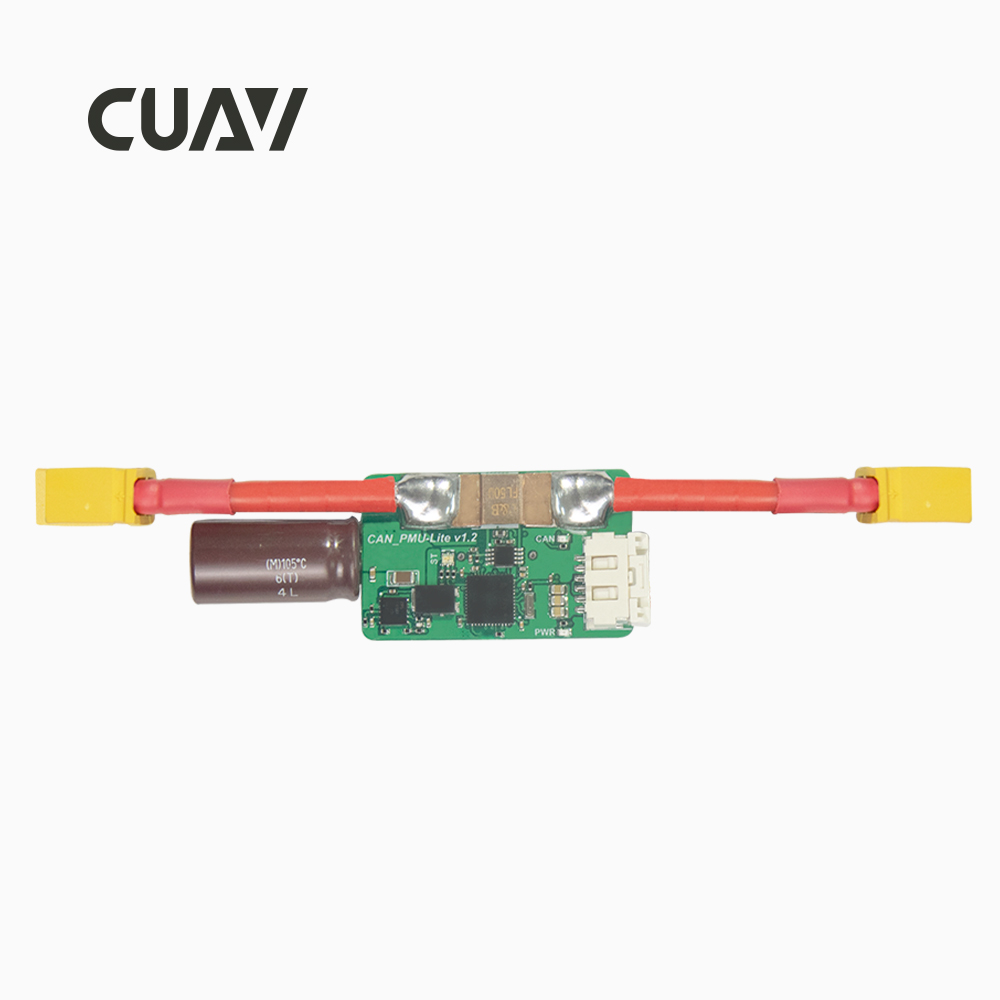

CUAV CAN PMU Lite Drone Uav Power Module Remote Controller Drone Propeller Parts Drone Power Voltage Module Accessories
CUAV CAN PMU Lite Drone Uav Power Module Remote Controller Drone Propeller Parts Drone Power Voltage Module Accessories
CUAV CAN PMU Lite Drone Uav Power Module Remote Controller Drone Propeller Parts Drone Power Voltage Module Accessories
CUAV CAN PMU Lite Drone Uav Power Module Remote Controller Drone Propeller Parts Drone Power Voltage Module Accessories
CUAV CAN PMU Lite Drone Uav Power Module Remote Controller Drone Propeller Parts Drone Power Voltage Module Accessories

CUAV CAN PMU Lite Drone Uav Power Module Remote Controller Drone Propeller Parts Drone Power Voltage Module Accessories

$55.00
  • Built-in vibration damping, adapt to various harsh operating environments.
  • Triple-redundant IMUs with intelligent fault switching capability.
  • Supports temperature compensation for enhanced IMU performance.
  • CAN bus-compatible current meter support.
  • Modular design with customizable carrier board options.
14 People watching this product now!
UPS Courier delivery
UPS courier will deliver to the specified address
2-3 Days
Free 14-Day returns
Easy returns within 14 days

Product Description

官方合作图2.jpgBrief: CAN PMU lite is a CUAV standard version of the power management module, built-in STM32F412 processor, supports 10~62V voltage input and 5.4V/4A regulated output. Compared with HV_PM, it uses advanced CAN bus communication and supports standard UAVCAN protocol. PMU lite has built-in ITT temperature compensation algorithm and performs factory calibration to ensure the consistency of measurement results at different temperatures.
Can Pmu lite power module supports 10~62V voltage standard version of the power management module for plane quadcopters
Processor
STM32F103CEU6
Input voltage
10-62V (2-15S Lipo)
Maximum current
90A
Voltage accuracy
 ±0.15V
Current accuracy
±0.2A
Resolution
0.01A/V
Technical parameters
